Fuel Tanks

Motorsport fuel tanks

FIA FT3-1999 homologated safety fuel cells, aluminium enclosures and accessories for the fuel system

FIA FT3-1999 20 · 45 · 60 litres Dash 6 fittings Aluminium enclosure

A standard fuel tank is not built for racing: it will not withstand a heavy impact, it does not prevent leaks in a rollover and it rarely meets the technical regulations. That is why rally, hillclimb, circuit and autocross cars use a dedicated safety fuel cell, with reinforced construction, threaded fittings and a location shielded from the cockpit.

This category offers two ranges: FIA homologated ATL fuel cells for events that require homologation, and QSP fuel tanks for builds where the regulations do not ask for it. Complete the installation with aluminium enclosures, level senders, swirl pots and filters for the in-tank pump.

Two options depending on your regulations

ATL · FIA homologated

FIA FT3-1999 standard

20, 45 and 60 litre capacities

Round 45 L version for the spare wheel well

With or without top plate

Dedicated aluminium enclosure, level sender and accessories
QSP · No FIA homologation stated

20, 40 and 60 litre tanks

Silver or black finish

Compact, regular dimensions for easy fitting

1 and 2 litre swirl pots

For use where the regulations do not require an FIA fuel cell

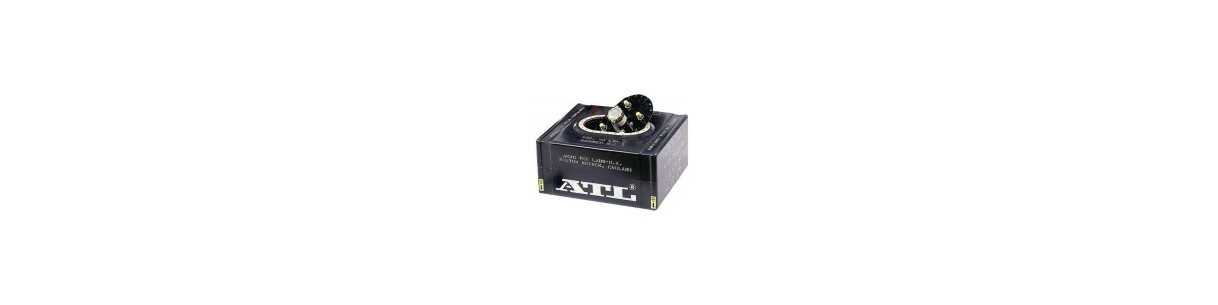

ATL fuel cells, FIA FT3-1999 homologated

Model Capacity Dimensions Details
ATL 20L 20 L 330 x 330 x 230 mm Dash 6 outlet, vent and optional return
ATL 45L 45 L 502 x 437 x 234 mm Dash 6 outlet, return and vent
ATL 45L round 45 L Ø 550 mm · 205 mm high For the spare wheel well · 2 Dash 6 outlets, Dash 6 vent, 57 mm filler
ATL 60L 60 L 602 x 437 x 324 mm Dash 6 outlet, return and vent
Important: the aluminium enclosure is mandatory
To fully comply with the FIA standard, ATL fuel cells must be fitted inside an aluminium enclosure. The enclosure is available for the 20 L ATL (350 x 350 x 240 mm) and for the 60 L ATL. Add the ATL tubular level sender (570 mm, 12 V, 240-33 ohm) to read how much fuel is left in the tank.

QSP fuel tanks and accessories

Product Capacity Dimensions / fitting Finish
Fuel tank 20 L 300 x 260 x 260 mm Silver or black
Fuel tank 40 L 410 x 380 x 260 mm Silver or black
Fuel tank 60 L 510 x 460 x 260 mm Silver or black
Fuel swirl pot 1 L / 2 L 6 x 3/8 NPT female ports -
Water tank 1.5 L - -

You will also find the alloy tank cap and the filter for 404 / 044 type in-tank pumps.

How to choose your fuel tank

1
Regulations. If your event requires a homologated tank, choose an ATL FIA FT3-1999 fuel cell and fit it with its aluminium enclosure.
2
Capacity. Work out the litres from the length of the stages or the race and your engine's consumption. More litres means more weight.
3
Space. Measure the available space. The round 45 L ATL is designed for the spare wheel well.
4
Fittings. ATL fuel cells use male Dash 6 fittings for outlet, return and vent. Prepare your lines and fittings in that size.
5
Fuel level. With the ATL level sender you always know how much fuel is left.
6
Valid homologation. Check the manufacturing date on the FIA label and the validity your regulations require before scrutineering.
Questions about your installation?
We give free advice on choosing the tank, enclosure and fittings your race car needs.
