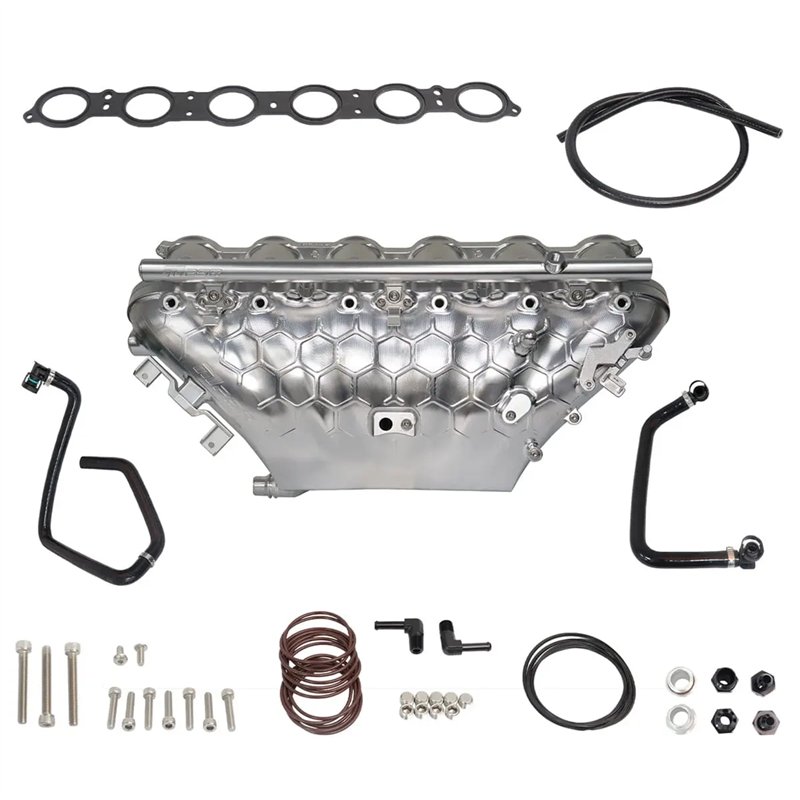

CNC Intake Manifold with Intercooler for BMW S58B30 G8X M2/M3/M4
€3,302.44
Tax Included
- Temperatures up to 30°C lower
- Solid Billet Pieces
- Plug & Play assembly
-
Significant performance increase
Maximize the performance of your S58 engine with this water-cooled CNC intake manifold
The S58 engine, introduced with the G-Series, has proven to be a true gem. Its tuning potential is enormous.
However, it has some minor weaknesses that should be addressed for both performance and reliability. The S58 uses a water-to-air intercooler, cooled by a front-mounted heat exchanger. This exchanger is responsible for cooling the water circulating through the intercooler.
This intake manifold with integrated intercooler boasts the largest plenum on the aftermarket. With a volume over 65% greater than the stock version and up to 15% larger than comparable intake manifolds, the result is temperatures up to 30°C lower.
Characteristics
| ✔ Significantly improved cooling performance |
| ✔ Over 60% more volume compared to the original part |
| ✔ Made of 6061-T6 aluminum |
| ✔ Fully CNC machined |
| ✔ The largest S58 plenum on the market (5,250 cm³) |
| ✔ One-piece plenum machined from solid aluminum for maximum stability |
| ✔ Internal airflow optimized through CFD |
| ✔ Interchangeable modular design (single MPI / dual MPI) |
| ✔ Integrated AN8 high-performance injection ramp (optional) |
| ✔ Compatible with Bosch EV14 injectors |
| ✔ 6 top NPT connections for methanol, nitrous oxide and sensors |
| ✔ Original (OEM) anchor points |
| ✔ 2 lower NPT ports for pressure source, MAP sensors or other NPT applications |
Compatible vehicles
BMW
| Model | Years | Engine | Code | Power |
|---|---|---|---|---|
| Series 2 (G87) | 2023-> | 3.0 (S58) | S58B30 | 460 hp (338 kW) |
| Series 2 (G87) | 2023-> | 3.0 (S58) | S58B30 | 530 hp (390 kW) |
| Series 2 (G87) | 2023-> | 3.0 (S58) | S58B30 | 480 hp (353 kW) |
| Series 3 (G20, G21, G28, G80, G81) | 2019-> | 3.0 (S58) | S58B30 | 480 hp (353 kW) |
| Series 3 (G20, G21, G28, G80, G81) | 2019-> | 3.0 (S58) | S58B30 | 510 hp (375 kW) |
| Series 4 (G22, G23, G26, G82) | 2020-> | M4 | S58B30 | 480 hp (353 kW) |
| Series 4 (G22, G23, G26, G82) | 2020-> | M4 | S58B30 | 510 hp (375 kW) |
| Series 4 (G22, G23, G26, G82) | 2020-> | M4 | S58B30 | 550 hp (405 kW) |
| X3 (G01, F97, G08) | 2017-> | M | S58B30 | 480 hp (353 kW) |
| X3 (G01, F97, G08) | 2017-> | M | S58B30 | 510 hp (375 kW) |
| X4 (G02, F98) | 2018-> | M | S58B30 | 480 hp (353 kW) |
| X4 (G02, F98) | 2018-> | M | S58B30 | 510 hp (375 kW) |
21psr046
