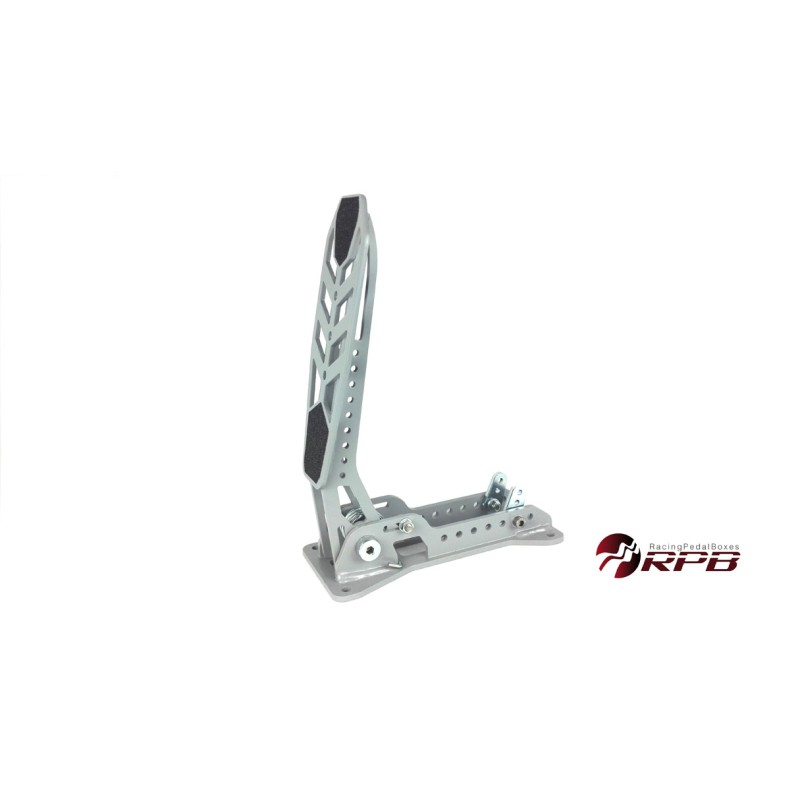

Electronic accelerator pedal

The RPBT003 electronic accelerator pedal is designed to attach 2 linear displacement sensors.

• The accelerator pedal has multiple mounting points for different types of linear displacement sensors .
• The maximum extended sensor length must be 200mm , and the minimum extended length 100mm .
• The sensor displacements must be between 25-50mm .
• The pedal has a wide surface area to improve driving and facilitate pedal combinations
• The pedal's turning angle is adjustable, with a maximum angle of 28 degrees.
• The pedal weighs 1.05 kg.
• The pedal is fixed to the floor using 4 M6 screws.
• The support surface has non-slip surfaces .
• All parts have an anti-corrosive surface treatment to ensure maximum durability.
