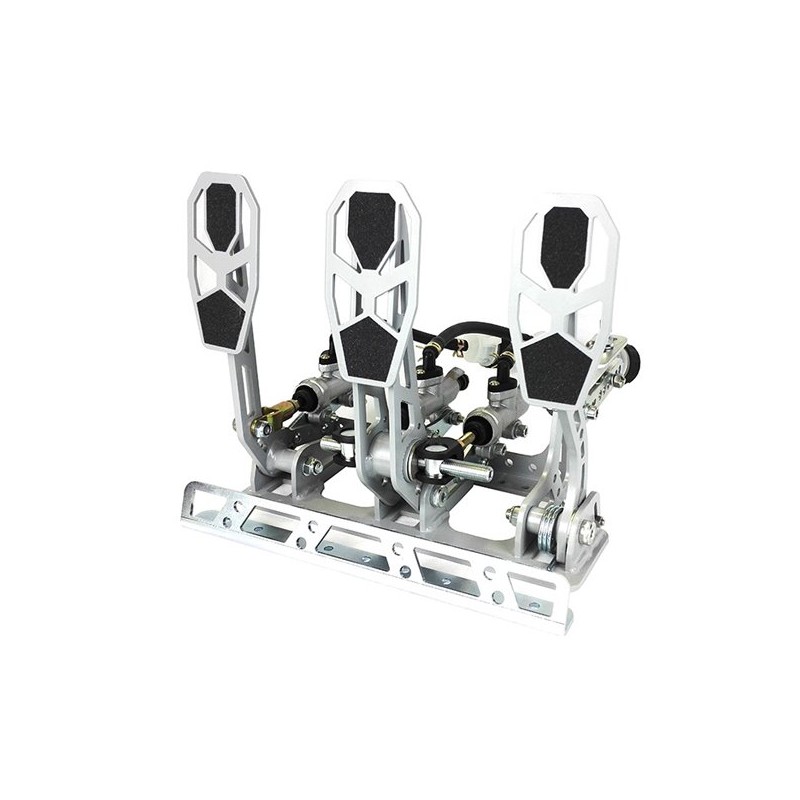

Car Cross Pedal Box
€384.30
Tax Included
Compact Racing Pedal Boxes pedal box for car cross, floor or runner mounted. Brake with bias bar and 5:1 ratio, hydraulic clutch and adjustable cable throttle. 3.15 kg without master cylinders. Master cylinders not included.
Racing Pedal Boxes Car Cross Pedal Box
Compact floor-mounted pedal box designed for car cross
| Car Cross | 5:1 ratio | Hydraulic clutch | 3.15 kg |
The Car Cross Pedal Box from Racing Pedal Boxes is designed specifically for car cross vehicles. It can be mounted to the floor or on runners to adjust the distance to the driver and, thanks to its compact design, it is easy to install.
It is made from welded high-strength steel parts with optimised designs for a good stiffness-to-weight ratio.
MASTER CYLINDERS NOT INCLUDED: the hydraulic master cylinders are sold separately. Contact us and we will help you choose them.
Pedals and adjustment
| Throttle: adjustable cable pull; you can adjust the pedal travel angle and the cable travel distance. | |
| Brake: bias bar for twin hydraulic master cylinders and 5:1 pedal ratio. | |
| Bias bar included: 7/16"-20 UNF thread for maximum stiffness and M8 connections for motorcycle-type master cylinders. | |
| Clutch: hydraulic, for a hydraulic master cylinder, with M8 pushrod connection. | |
| Optional remote cable adjuster (7/16 UNF, ref. RPBAB03) to control the brake bias from the seat. |
Construction
| Anti-slip surface on all pedals. | |
| High-quality steel pedal shafts; controlled tightening torque reduces side play in the pedals. | |
| Anti-corrosion treatment on all parts. | |
| Heel rest to keep your feet in a comfortable position. |
Technical specifications
| Mounting | Floor or runners |
| Brake ratio | 5:1 |
| Bias bar thread | 7/16"-20 UNF |
| Master cylinder connection | M8 (motorcycle-type cylinders) |
| Clutch | Hydraulic, M8 pushrod |
| Weight | 3.15 kg without cylinders / 4.05 kg with cylinders |
| Master cylinders | Not included |
| Manufacturer | Racing Pedal Boxes |
| Reference | RPB0005 |
Compact Racing Pedal Boxes pedal box for car cross, floor or runner mounted. Brake with bias bar and 5:1 ratio, hydraulic clutch and adjustable cable throttle. 3.15 kg without master cylinders. Master cylinders not included.
