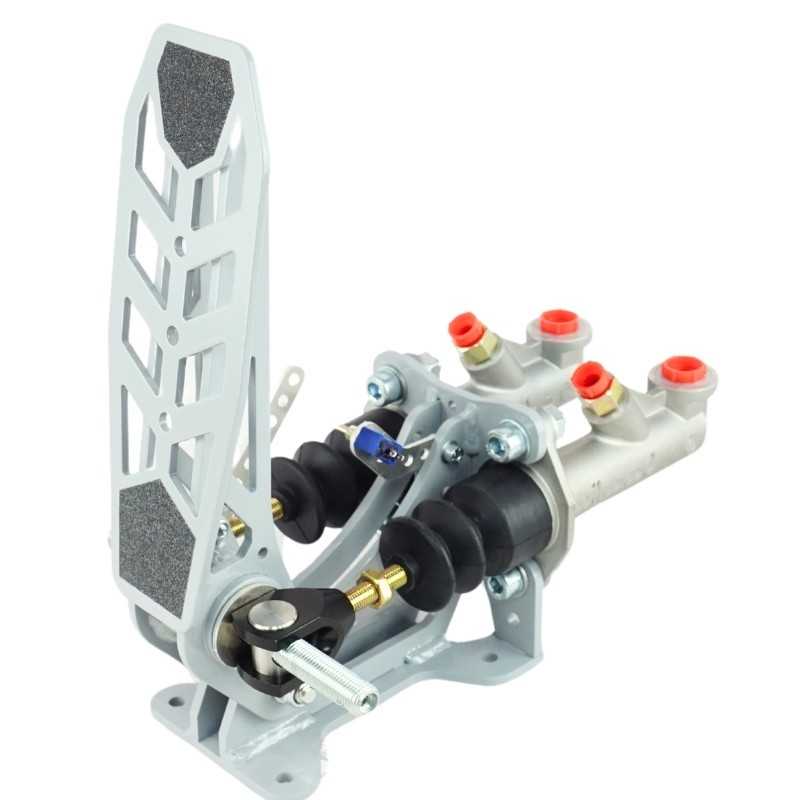

RPBB001FS Formula Student Brake Pedal
€196.69
Tax Included
Racing Pedal Boxes RPBB001FS brake pedal for Formula Student (FSAE). Welded high-strength steel, dual master cylinder setup with balance bar included, brake over-travel switch (BOTS), 5:1 ratio and designed to withstand 2 kN. Master cylinders not included.
RPBB001FS Formula Student Brake Pedal
Dual master cylinder brake pedal with bias bar and BOTS for FSAE
| Formula Student | Bias bar included | BOTS | 5:1 ratio |
The Racing Pedal Boxes RPBB001FS brake pedal is designed for Formula Student FSAE cars, both electric and combustion.
It is made from welded high-strength steel parts with a lightened design that improves the stiffness-to-weight ratio, to meet FSAE regulations.
MASTER CYLINDERS NOT INCLUDED: master cylinders are sold separately. Contact us and we will advise you on the bore size.
FSAE rules compliance
| Dual master cylinders with brake bias bar to balance front and rear braking force (rule T 6.1.2). | |
| Each master cylinder can have its own reservoir (rule T 6.1.2). | |
| Designed to withstand 2 kN without failure (rule T 6.1.9). | |
| Welded steel parts with a lightened design (rule T 6.1.10). | |
| Pedal over-travel switch included (rule T 6.2, Brake Over-Travel Switch). |
Features
| Brake bias bar included, 7/16"-20 UNF thread for maximum stiffness. | |
| Connection for Wilwood or Girling type master cylinders: 5/16"-24 UNF. | |
| 5:1 pedal ratio. | |
| Optional: remote cable adjuster (7/16 UNF) to adjust the bias from the seat, 3/8 UNF brake light switch and fluid reservoirs. | |
| Large non-slip pedal face. | |
| Floor mounted with 4 M6 bolts. | |
| Anti-corrosion treatment on every part. |
Technical specifications
| Use | Formula Student FSAE |
| Material | Welded high-strength steel |
| Master cylinders | Dual (not included), Wilwood or Girling type |
| Master cylinder connection | 5/16"-24 UNF |
| Brake bias bar | Included, 7/16"-20 UNF |
| Over-travel switch (BOTS) | Included |
| Pedal ratio | 5:1 |
| Rated load | 2 kN |
| Mounting | Floor, 4 M6 bolts |
| Weight | 1.4 kg without cylinders / 2.2 kg with cylinders |
| Brand | Racing Pedal Boxes |
| Reference | RPBB001FS |
