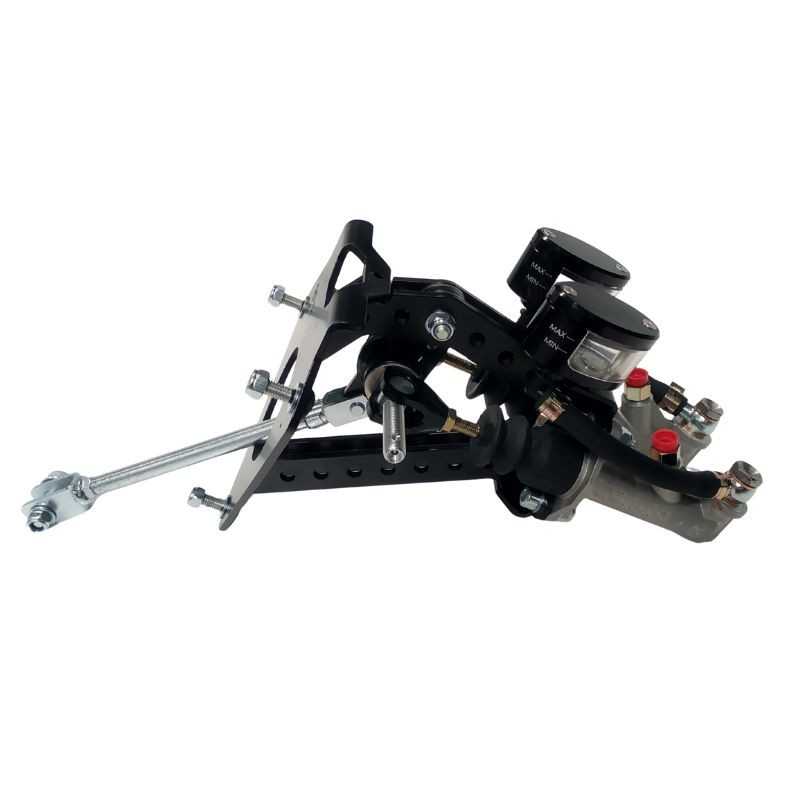

Porsche 944 Brake Servo Delete Kit
€466.94
Tax Included
Racing Pedal Boxes brake servo delete kit for the Porsche 944. It replaces the original brake servo and lets you fit twin hydraulic master cylinders with a bias bar, with independent front and rear circuits. Ideal for track and drift. Master cylinders not included. Not road legal.
Porsche 944 Brake Servo Delete – Racing Pedal Boxes
Remove the brake servo and fit twin master cylinders with a bias bar
| Twin cylinders | Bias bar included | Motorsport | Porsche 944 |
Replace the original brake servo on your Porsche 944 with this compact, reliable kit, designed especially for motorsport. It improves brake pedal feel and gives more precise brake modulation.
It lets you fit a twin hydraulic master cylinder system with fully independent front and rear brake circuits. Brake balance between the axles is adjusted with the bias bar, making it an ideal solution for track and drift. It is made from welded high-strength steel parts with a lightened design for a good stiffness-to-weight ratio.
COMPETITION ONLY: not homologated for road use. The hydraulic master cylinders are sold separately: contact us and we will help you choose them.
Features
| Twin hydraulic master cylinders with bias bar to adjust the force between the front and rear brakes. | |
| Bias bar included, with a 7/16"-20 UNF thread for maximum stiffness. | |
| 5/16"-24 UNF connections for Wilwood or Girling type master cylinders. | |
| Mounted with 4 M8 bolts. | |
| Anti-corrosion treatment on all parts. |
Options
| 7/16 UNF remote cable adjuster (ref. RPBAB03) to control the bias from the seat. | |
| 3/8 UNF brake light switch (ref. RPBAB12) on the master cylinder. | |
| Fluid reservoirs (ref. RPBAD02), mounted on the cylinders or remotely. |
Technical specifications
| Vehicle | Porsche 944 |
| System | Twin hydraulic master cylinders with bias bar |
| Bias bar thread | 7/16"-20 UNF |
| Cylinder connection | 5/16"-24 UNF (Wilwood or Girling type) |
| Mounting | 4 x M8 bolts |
| Weight | 1.4 kg without cylinders / 2.2 kg with cylinders |
| Master cylinders | Not included |
| Homologation | Not road legal |
| Manufacturer | Racing Pedal Boxes |
| Reference | RPBS004 |
RPBS004
Racing Pedal Boxes brake servo delete kit for the Porsche 944. It replaces the original brake servo and lets you fit twin hydraulic master cylinders with a bias bar, with independent front and rear circuits. Ideal for track and drift. Master cylinders not included. Not road legal.
