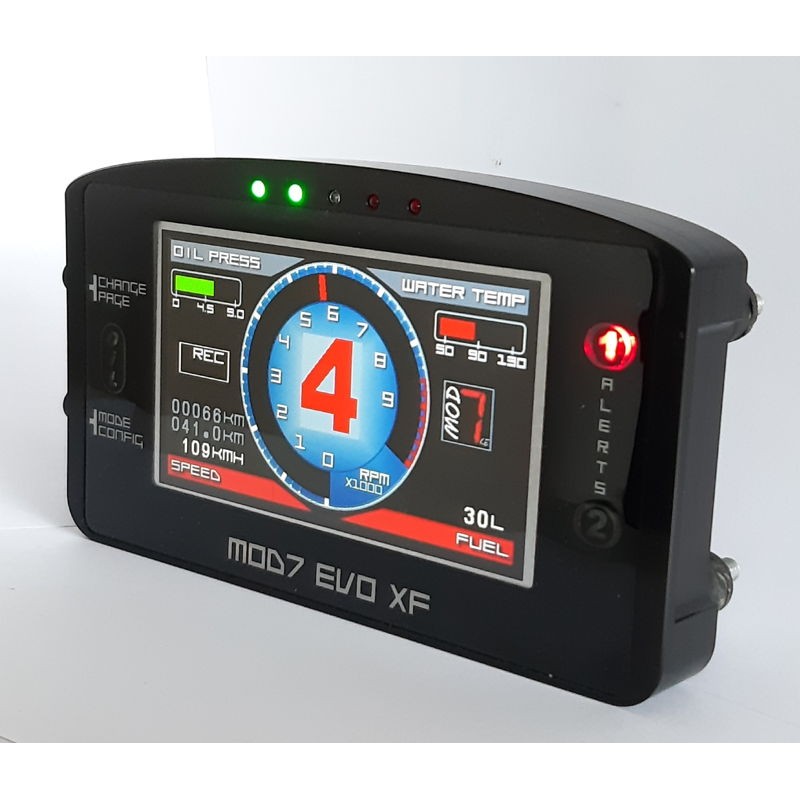

MOD7 XF Instrument Display
€784.30
Tax Included
MOD7 Evo XF TFT instrument display for competition vehicles, configurable directly on the panel without a computer.
MOD7 XF Instrument Display
Brand: MOD7 · MOD 7 Evo XF
The MOD7 Evo XF instrument panel is configured directly on the dashboard, with no need to connect it to a computer. It shows engine speed, engaged gear, water temperature, oil, fuel and turbo pressures, fuel level, speed and distances across several information pages.
| Features |
| ■ | Direct configuration on the panel, no PC needed |
| ■ | Several information pages, with the gear shown in very large figures on pages 3 and 4 |
| ■ | RPM as a bargraph with programmable red zone or as a needle |
| ■ | 5 very bright LED shift light (2 green, 1 orange, 2 red), progressive and flashing at the shift point |
| ■ | Programmable LED alerts that change colour from green to red |
| ■ | Engaged gear for sequential gearbox (potentiometer) or H-pattern gearbox by calculation, with self-learning |
| ■ | Peak value memory: RPM, temperature, oil pressure and speed |
| ■ | Display brightness adjustable in 3 levels |
| Technical specifications |
| Engine speed | 0 – 10,000 rpm |
| Water temperature | Original car sensor (with calibration) or MOD7 sensor |
| Oil pressure | VDO 10 bar sensor (not included), alert 0.5 – 2.0 bar |
| Fuel pressure | VDO 10 bar sensor (not included), alert 2.5 – 4.0 bar |
| Turbo pressure | VDO 2 bar sensor (not included), alert 0.5 – 2.0 bar |
| Fuel level | Original sensor, up to 60 L in 10 L steps |
| Speed | Up to 300 km/h, magnetic sensor with magnet included |
| Wheel circumference | 1.40 m to 2.30 m |
| Distances | Total up to 50,000 km · partial up to 999.9 km |
| Data logging | Engine speed, speed, gear, water temperature and oil pressure · 5 times per second · up to 2 h |
| Dimensions | 160 × 92 × 19 mm |
| Weight | Approx. 380 g with sensors and cables |
| Reference | MOD-7EVOXF-DATA |
| Note: VDO pressure sensors are not included. The data analysis function is activated at the factory; contact us if you have any questions. |
