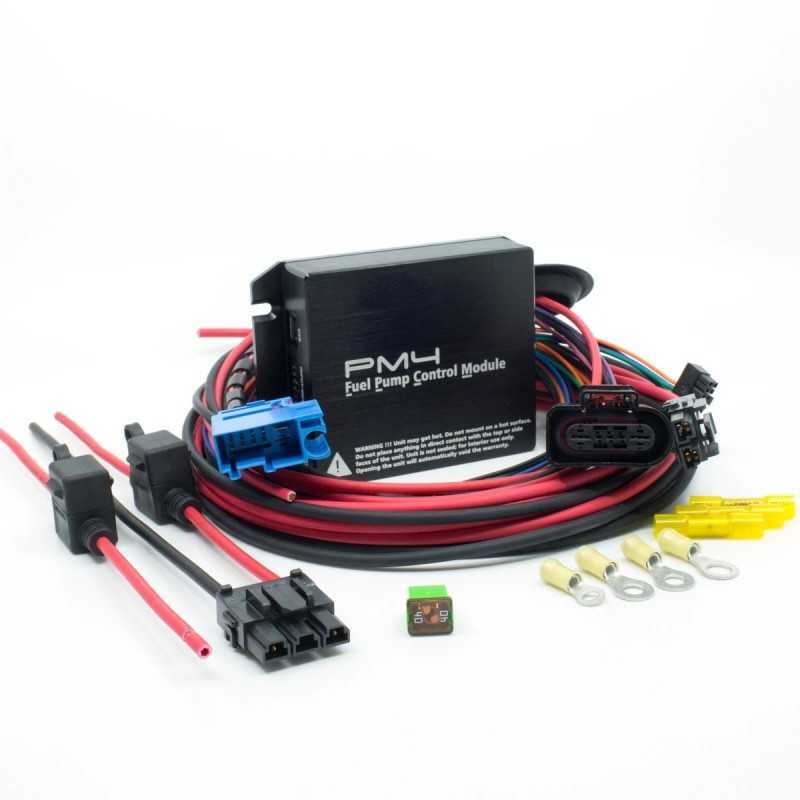

Torqbyte TURBO PM4 Fuel Pump Power Module for TFSI / TSI Upgrade Pumps
€1,156.18
Tax Included
Torqbyte TURBO PM4 power module for upgrade fuel pumps on TFSI, TSI and MQB: external power supply, stable low-side pressure, up to 2 pumps, PWM signal and VCDS compatible. Plug & play with cable and adapter.
Torqbyte TURBO PM4 Fuel Pump Power Module for TFSI / TSI Upgrade Pumps
External power supply for upgrade low-pressure pumps on TFSI, TSI and MQB engines
| Up to 2 pumps | Plug & play | VCDS compatible | Closed-loop PWM |
Above a certain power level the low-pressure pump has to be replaced with a stronger one: Walbro, DW, Bosch, Aeromotive or BAR-TEK. They all draw more current, and the original power stage reaches its limit, especially in hot weather. The result is fuel supply failures.
The Torqbyte TURBO PM4 powers the pump from an external supply, so it cannot overheat and guarantees enough low-side pressure at all times. For example, the original Golf 7 power stage works at 17 A maximum, while a Walbro can draw up to 25 A; with the original module the pump cannot deliver its full potential, which can cause misfires or a complete in-tank pump failure. BAR-TEK uses it on its test cars: Audi A3 2.0 TFSI, Golf 6 TSI EA888 and Golf 7 MQB.
BEFORE YOU BUY: compare the connector with the one on your car and choose the right version; if in doubt, contact us. The unit can get hot: do not mount it on a hot surface or let anything touch its top or sides. It is not sealed and is for interior mounting only. Opening it voids the warranty.
Features
| Enough low-side pressure at all times. | |
| No overheating thanks to the external power supply. | |
| For TFSI, TSI and MQB vehicles. | |
| Connection cable and upgrade adapter included. | |
| Stores no fault codes. | |
| Works with the ECU via closed-loop PWM signal. | |
| Controls up to 2 pumps, also ideal for big turbo upgrades. | |
| Fully VCDS compatible and updatable. | |
| Plug & play: the module comes pre-configured. |
Available versions
| 2.0 TFSI EA113 and TSI EA888 Gen.2. | |
| 2.0 TSI Gen.3 (MQB) + Audi B8 platform. | |
| 2.0 TSI Gen.3 (MQB) all-wheel drive. | |
| Audi B7 A4, S4, RS4. | |
| Audi B8 Facelift platform. |
Applications (per BAR-TEK)
| VW Golf V, Golf VI, Golf VII, Jetta, Passat B6/B7/B8, Passat CC, Polo V/VI, Scirocco III, Tiguan I/II; Audi A3/S3, A4/S4/RS4 B7, B8 platform. |
Technical specifications
| Type | Fuel pump power module |
| Pumps | Up to 2 |
| Control | Closed-loop PWM signal |
| Diagnostics | VCDS compatible |
| Includes | Connection cable and adapter |
| Mounting | Interior only (not sealed) |
| Brand | Torqbyte |
| Reference | 21tf291 |
