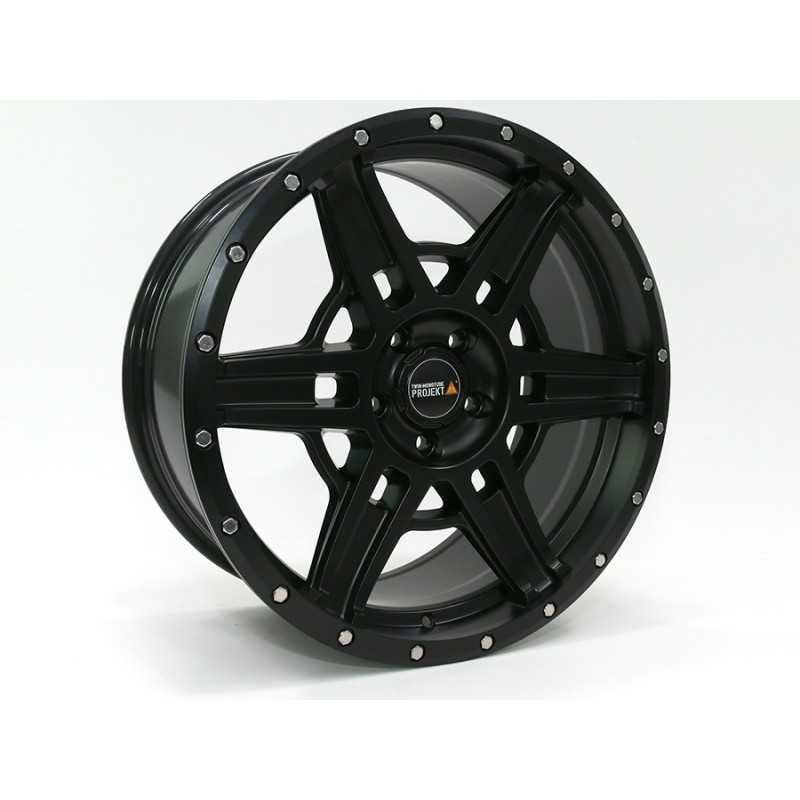

Twin Monotube Projekt AT520 9x20 satin black wheel VW T5 / T6 / T6.1
€650.00
Tax Included
9x20" aluminium wheel in satin black. With bolt-on protection ring. For VW T5 / T6 / T6.1. Price per unit. Minimum order: 4 units.
Twin Monotube Projekt AT520 · 9x20" · VW T5 / T6 / T6.1
The Twin Monotube Projekt AT520 is a 9x20" aluminium wheel in satin black, developed specifically for VW T5 / T6 / T6.1. It features a bolt-on, replaceable protection ring fixed with stainless steel bolts.
Specifications
| Vehicles | VW T5 / T6 / T6.1 |
| Size | 9x20" |
| Offset (ET) | ET43 |
| Bolt pattern | 5x120 |
| Centre bore | 65 mm |
| Bolt seat | R14 ball seat, for the original wheel bolts |
| Maximum load | 1,000 kg per wheel |
| Tyres | 275/35 R20 |
| Finish | Satin black |
| Certificate | TÜV report (Teilegutachten) for the listed vehicles |
| Reference | TMP-FE-AT5-20-BLK |
Features
| Bolt-on, replaceable protection ring | |
| Ring bolts in silver-grey austenitic stainless steel | |
| Concave design | |
| Fits front and rear axle | |
| Clearance for the large 17" T6.1 brake | |
| Suitable for winter use | |
| TÜV report for the listed vehicles |
Please note
| On models with the wide sliding door trim, the door stop angle may need adjusting to avoid contact with the ring. | |
| If the van is lowered on coilovers, steering angle limiters can be fitted to avoid trimming the front inner wheel arch liner. |
Sold per unit, minimum order 4 units
The price shown is per wheel. If you have any doubts about compatibility with your vehicle, contact us before buying.
TMP-FE-AT5-20-BLK
9x20" aluminium wheel in satin black. With bolt-on protection ring. For VW T5 / T6 / T6.1. Price per unit. Minimum order: 4 units.
