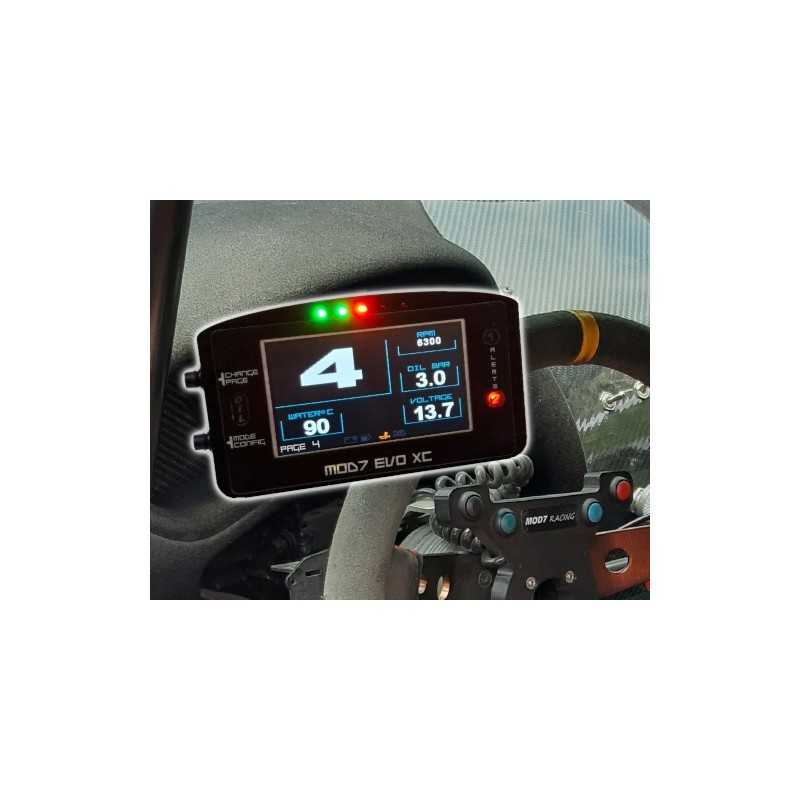

MOD7 EvoXC 2026 CAN Bus Dashboard
€735.54
Tax Included
MOD7 EvoXC 2026 CAN bus dashboard: 4.3" colour TFT screen customisable in 11 colours, 5-LED shift light, programmable red-line and set-up without a PC. Compatible with the most common ECUs.
MOD7 EvoXC 2026 CAN Bus Dashboard
Customisable 4.3" colour TFT display, second-level version of the MOD7 2026 CAN bus range
| 4.3" TFT | CAN bus | 11 colours | 5-LED shift light |
The MOD7 EvoXC 2026 is the second-level version of the MOD7 Racing 2026 CAN bus range. Its 4.3" colour TFT screen has 3 brightness levels, and you can choose the colour of the function blocks and gear display area from 11 colours, as well as the rev counter red-line.
It is set up directly on the dash, with no PC, and comes pre-configured for immediate use. Machined POM-C housing and 4 silentbloc mounts. The magnetic speed sensor with magnet is optional.
CHOOSE YOUR VERSION: without speed sensor (speed via CAN) or with the magnetic sensor included. 1-year warranty.
Functions
| Engine speed (CAN): bar graph up to 13,000 rpm and digital up to 14,000 rpm, programmable red-line and max memory. | |
| Shift light: 5 LEDs (2 green, 1 orange, 2 red), progressive then flashing. | |
| Water temperature (CAN) and oil temperature (CAN or wired, with a 150 °C VDO sender not included): alerts and max memory. | |
| Oil pressure (CAN or wired): alert from 0.5 to 2.0 bar; without CAN it needs a 10 bar VDO sender (not included). | |
| Fuel and boost pressure (CAN): programmable alerts and max memory. | |
| Gear position (CAN only): R, N and 1 to 6. | |
| Fuel level (wired): reads the original sender, 0 to 60 litres. | |
| Speed (CAN or wired): up to 255 km/h via CAN or 300 km/h with the magnetic sensor; wheel circumference 1.40 to 2.30 m. | |
| Also: voltmeter, intake temperature and pressure and throttle position. |
Compatible ECUs (CAN)
| AEM, DTA, EcuMaster, Erace, EFI Euro2, Haltech, Hondata, Ignitec, KMS, MaxxEcu, MegaSquirt, MM SRA1, ME, Motec M1, Prolog, SGS Delta, Sodemo EV14/EV16, Sybele. |
Contents
| 1 MOD7 EvoXC dashboard. | |
| 4 silentbloc mounts. | |
| 2 wiring looms with locking connectors. | |
| Fitting instructions with wiring diagram (in French). | |
| Optional: magnetic speed sensor + propshaft magnet. |
Technical specifications
| Screen | 4.3" colour TFT, 3 brightness levels |
| Colours | 11 to choose from |
| Pages | 4 + max-value page |
| Shift light | 5 LEDs |
| Housing | Machined POM-C |
| Dimensions | 160 x 92 x 19 mm |
| Weight | Approx. 360 g |
| Warranty | 1 year |
| Brand | MOD7 Racing |
MOD7-EVOXC-2026-1
MOD7 EvoXC 2026 CAN bus dashboard: 4.3" colour TFT screen customisable in 11 colours, 5-LED shift light, programmable red-line and set-up without a PC. Compatible with the most common ECUs.
