MOD7 EvoXC UltiMax CAN Bus Dashboard
€714.88
Tax Included
MOD7 EvoXC UltiMax CAN bus dashboard: 4.3" colour TFT screen, 600 MHz processor, 9 pages, 5-LED shift light and speed via CAN or GPS. Set up without a PC. Compatible with the most common ECUs.
MOD7 EvoXC UltiMax CAN Bus Dashboard
4.3" colour TFT display with shift light, the top version of the MOD7 2026 CAN bus range
| 4.3" TFT | CAN bus | 5-LED shift light | Optional GPS |
The MOD7 EvoXC UltiMax is the third-level version of the MOD7 Racing 2026 CAN bus range. It has a 600 MHz processor, a high-brightness 4.3" colour TFT screen, 9 display pages (one in the style of the blue MOD7 Evo1) and 3 max-value pages.
It is set up directly on the dash, with no PC and no computer skills needed, and comes pre-configured so you can use it straight away. The rev counter changes colour to match the shift light LEDs, and speed is read via CAN or via GPS with the optional magnetic antenna. Machined POM-C housing and 4 silentbloc mounts.
CHOOSE YOUR VERSION: without GPS (speed via CAN) or with GPS and magnetic antenna included. If you are unsure about compatibility with your ECU, contact us before you buy.
Functions
| Engine speed (CAN): bar graph up to 9,000 or 12,000 rpm, digital up to 12,000 rpm, with max memory. | |
| Shift light: 5 LEDs (1 green, 3 orange, 1 red), progressive then flashing, each with its own rpm. | |
| Water and oil temperature (CAN): programmable alerts and max memory. | |
| Oil pressure (CAN or wired): alert from 0.5 to 2.5 bar; without CAN it needs a 10 bar VDO sender (not included). | |
| Fuel and boost pressure (CAN): programmable alerts, including direct injection (100 to 200 bar). | |

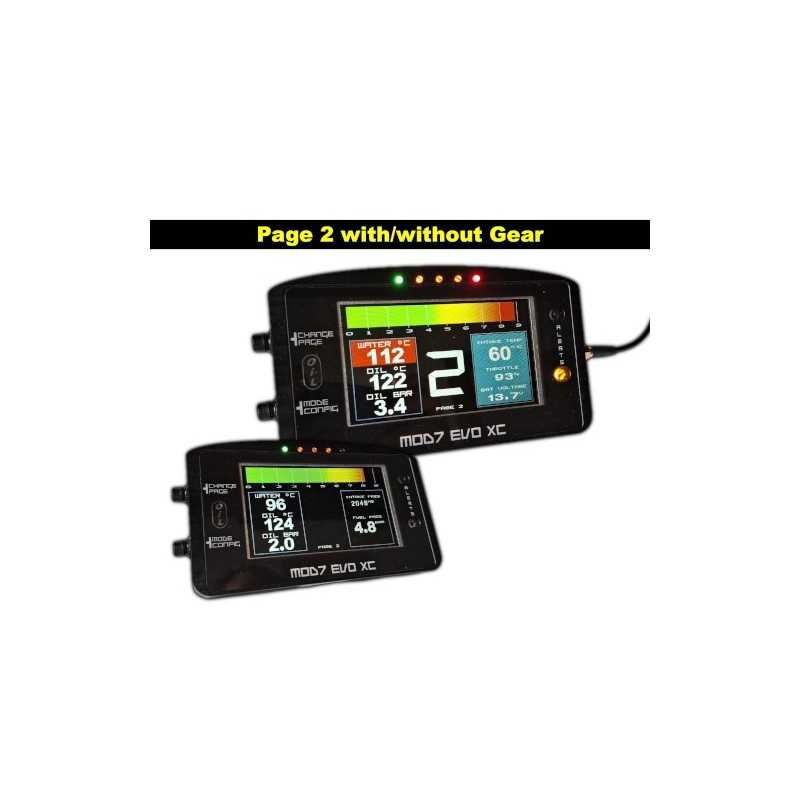

| Gear position (CAN only): R, N and 1 to 6, can be switched off with a manual gearbox. | |
| Fuel level (wired): reads the original sender, 0 to 60 litres. | |
| Speed (CAN or GPS): up to 255 km/h via CAN; with GPS, also time, altitude, total and trip distance. | |
| Also: voltmeter, intake temperature and pressure, throttle position and 1/100 s lap timer. | |
| 3 brightness levels for screen and shift light: full sun, cloudy and night. |
Compatible ECUs (CAN)
| AEM, DTA, EcuMaster, Erace, EFI Euro2, Haltech, Hondata, Ignitec, KMS, MaxxEcu, MegaSquirt, MM SRA1, ME, Motec M1, Prolog, SGS Delta, Sodemo EV14/EV16, Sybele. |
Contents
| 1 MOD7 EvoXC UltiMax dashboard. | |
| 4 silentbloc mounts. | |
| 2 wiring looms with locking connectors. | |
| Fitting instructions. | |
| Optional: magnetic GPS speed sensor. |
Technical specifications
| Screen | 4.3" colour TFT, high brightness, 3 levels |
| Processor | 600 MHz |
| Pages | 9 display + 3 max values |
| Shift light | 5 LEDs |
| Housing | Machined POM-C |
| Dimensions | 160 x 92 x 19 mm |
| Weight | Approx. 360 g |
| Mounting | 4 silentblocs |
| Brand | MOD7 Racing |
