Manual rotary pump for fuel supply at events: 1 turn = 1 litre, works in both directions.

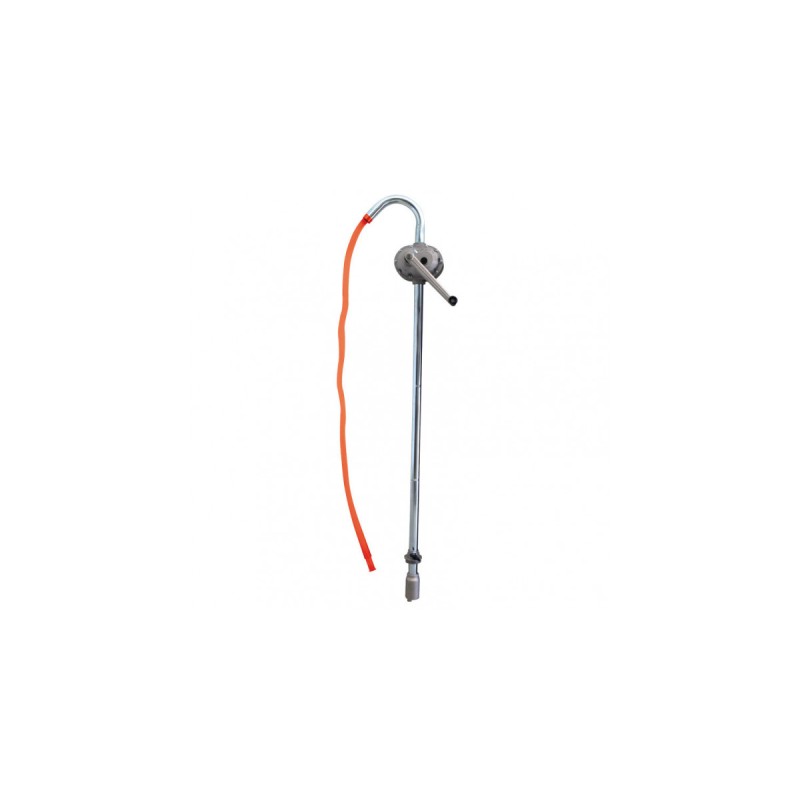

Rotary Manual Fuel Pump
Brand: RRS · 1 L per turn
Rotary fuel supply pump, ideal for use at events. It works in both directions and each turn of the crank equals 1 litre of fuel. It empties or transfers low-viscosity petroleum-derived liquids such as racing petrol, petrol, kerosene or oils.
| Features |
| ■ | Rotary type, works in both directions |
| ■ | 1 crank turn = 1 litre |
| ■ | Submerged parts in cast aluminium and stainless steel |
| ■ | For non-corrosive liquids with a maximum viscosity of SAE 30 |
| ■ | Includes suction filter; recommended to extend pump life |
| ■ | 2.20 m hose (colour may vary: black or orange) |
| Technical specifications |
| Reference | 1003004011 |
| Flow rate | 1 L per turn |
| Max. fluid temperature | 60 °C |
| Maximum viscosity | SAE 30 |
| Materials | Cast aluminium and stainless steel |
| Hose | 2.20 m (Ø inner 26 mm / outer 35 mm) |
| Weight | 8 kg |
| Important: the pump is supplied without oil; fill it with SAE 10 hydraulic oil before use. Do not use with detergents, acids or other corrosive products. |
