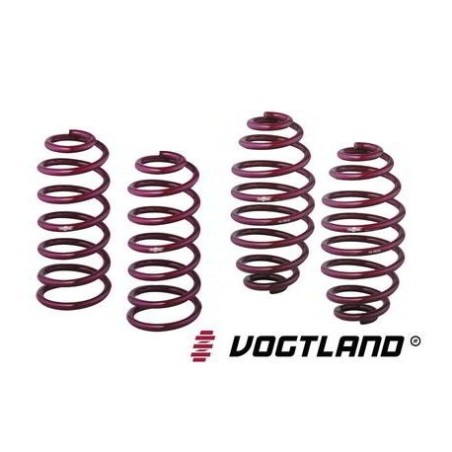

Muelles Vogtland
Vogtland springs reduce the height of the car by approximately 2.5 to 3.5 centimetres, reducing the centre of gravity and the space between the wheel and the fender, giving a sportier appearance and increasing stability when cornering.
Vogtland spring kits are manufactured from a steel and silicon alloy that is tempered to achieve a high quality sports spring suitable for mounting with the original shock absorber or for mounting on a sports shock absorber.
Due to its progressive nature, it combines comfort and sportiness, ideal for those drivers looking for fast driving in their everyday vehicle.
These are some of the advantages you will get by equipping your car with Vogtland sport springs.
- Reducing the height therefore reduces the Center of Gravity.
- Lower centre of gravity means less roll and greater grip when cornering.
- The swaying caused by inertia when braking is reduced.
- Greater traction on the drive axle, reduced loss of traction.
- More even tire wear.
Additional notes for mounting springs (see each reference).
| Note | Observations |
| 1. | The lowering measurement will be deducted from the vehicle's standard suspension measurement. |
| 2. | Wedge-shaped: the lowering of the front axle depends on the equipment and engine version. |
| 3. | From chassis number: 21234. |
| 4. | For precise adjustments, use the original Daimler Benz spring insulators available in different heights (8-23 mm). |
| 5. | Reinforced for fully equipped models with more than 4 cylinders. |
| 6. | A TÜV certificate is required, despite the ABE, for vehicles with load-dependent braking mechanisms. |
| 7. | Not applicable for self-leveling models. |
| 8. | In vehicles with automatic transmission, higher downshifts may occur. |
| 9. | Only for fully equipped vehicles. |
| 10. | The XR3i doesn't go down, you'll just get a stronger balance. |
| 11. | Vehicles with 6 cylinders require sport shock absorbers. |
| 12. | Not for family or SW. |
| 13. | As of ABE-No. 9138/2. |
| 14. | Until 8.79 please use front spring brackets with no. 171412341A. |
| 15. | Except for 4 x 4. |
| 16. | You may need to replace the front spring supports with the original reference VW-1 H0 412 341 (large) or 357 412 341 A (small). |
| 17. | Shorter Sport shock absorbers are required. |
| 18. | Cannot be used if the vehicle has original sport suspension as standard. |
| 19. | Front springs only; rear axle with torsion bars. |
| 20. | Rear springs only; front axle with torsion bars. |
| 21. | All wheel/tyre combinations published by the wheel type testing authority are possible here. |
| 22. | Wheel approval instructions must be adhered to except where OE suspension is required. |
| 23. | In certain vehicles, it may happen that the transmission contacts the anti-roll bar. In this case, a modified anti-roll bar must be installed. Anti-roll bar conversion kit without Xenon lights: 968 550 000. Or the Audi/VW steering rod. |
| 24. | Height adjustable on front and rear axles (threaded housings). |
| 25. | Height adjustable on front and rear axles (front axle with threaded housing, rear axle with threaded spring mount and separate shock absorber). |
| 26. | Height adjustable only on the front axle (threaded housings), springs and shock absorbers on the rear axle. |
| 27. | When using regular tires it may be necessary to use wheel spacers. |
| 28. | |
| 29. | Height adjustable on the front axle (threaded housings); rear axle with torsion bar. |
| 30. | The shock absorbers can be adjusted once mounted. |
| 31. | The shock absorbers cannot be adjusted once mounted. |
| 32. | Front indicators (§76/756 EG) must have a minimum height of 350 mm. Alfa reference: 46226968. |
| 33. | On vehicles manufactured before 04/02, the piston rod is attached to the support by a curved disc (the rod threads are visible). On models manufactured after 04/02, the rod threads are not visible. |
| 34. | Only for vehicles with rear shock absorbers below M10 (1.0i, 1.2i, 1.7Di). |
| 35. | Only for vehicles with rear shock absorbers below M14 (1.4i, 1.8i, 1.3CDTi, 1.7DTi, 1.7CDTi) |
| 36. | Front shock absorber, complete suspension cartridge. References: 966404, 966406, 966407, 966322, 960422, 969423, 960423, 960462. |
| 37. | Front shock absorber: cartridge |
| 38. | Shock absorbers for European vehicles only. |
| 39. | If the tree diameter is greater than 42 mm, the approved maximum drop is reduced by 15 mm. |
| 40. | The inner distance between shock mounting brackets should be 27 mm. |
| 41. | From chassis No. Y in 10th position. |
| 42. | For vehicles with 50mm cartridge. |
| 43. | For vehicles with 55mm cartridge. |
| 44. | For vehicles manufactured between 10/91 and 5/92, the upper mounting must be replaced with BMW ref. 31.331.090.467. |
| 45. | Up to 1998 (up to VIN: 8DX199999) |
| 46. | Tie rods 968220, 968221 need to be lowered more than 40mm |
| 47. | After mounting the clearance between the wheel and the suspension strut should be at least 5 mm. If it is smaller you have to use wheel spacers. |
| 48. | Audi: up to production date 4.00, VW: up to production date 9.99. |
| 49. | Audi: production date after 5.00, VW: production date after 10.99. |
| 50. | Without 16V, front mounting hole distance 52mm. |
| 51. | Without 16V, front mounting hole distance 54mm. |
| 52. | Without Rallye, TD, Genty, CT, CTI, GTI. |
| 53. | up to production date up to 8.04, without 2.0T, 3.0V6 CDTI, without IDS |
| 54. | Production date after 8.04, no 2.0T, 3.0V6 CDTI, no IDS |
| 55. | For vehicles with mounting eyes on the stern |
| 56. | For vehicles with transom mounted fork |
| 57. | Not for models built after 2004 |
| 58. | At the shock front the check measurements for the bracket: inner width 23 mm, mounting hole distance 52 mm. |
| 59. | For four-wheel drive (4WD) vehicles only. |
| 60. | Additional OE equipment is needed on cars with EDC. Front (or 8-cylinder) BMW - Part Number: Bearing 31331091709, Washer 31331116983, Dust Cap 31331110196. Rear BMW - Part Number: Bearing 33521091710, 33521090282, 33521092986 Washer, Dustseal 31331137932, Bumpstop 33531091031. |
| 61. | The OEM air suspension is not removed. A sport rear shock is offered and used with the air suspension. |
| 62. | Not for models with electronic damping |
| 63. | For all cars built before 6/92, the use of different upper-bearing in front is required. BMW - Part Number: Bearing 31336764947, Washer 31331116983, Dustseal 31331110196. |
| 64. | Without electric damping force regulation, without IDS + |
| 65. | For vehicles with leveling control additional OE-parts are required: Audi part number: 8E0512121E Bearing, Springseat 8E0512149H, bumpstop 4B0512131Q |
| 66. | Model specific plug&play adapter included |
| 67. | Model specific plug&play adapter available as an option |
| 68. | Only for vehicles with air suspension |
| 69. | Only for vehicles with ABC suspension |
| 70. | After VIN: Turbo: 4LA83740, S: 4LA48416, V6: 4LA01526, USA Turbo: 4LA93466, USA S: 4LA6&74337, USA V6: 4LA21527 |
